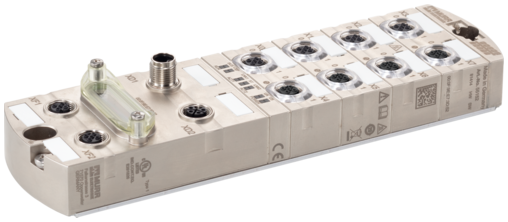

MVK-MPNIO DIO16 M12L 4P 55160
Bildet kan avvike fra produktet

MVK-MPNIO DIO16 M12L 4P

ProfiNet, Compact module, metal
Artikkelnummer: 55160
Vekt: 0.925 kg
Opprinnelsesland:  DE
Tilgjengelig
Find similar Product
Spørsmål
 Anbefal produkt
 Produktsammenlikning
Listepris per stykk:
legg til Easy-Import-Export

Beskrivelse

Digital inputs/outputs
DIO16 (IRT)
Ethernet 10/100 Mbit/s; M12, D-coded
M12 Power, 4-pole, L-coded
M12, 5-pole, A-coded
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
Certificate
Certificate
Certificate
Bus technologies

Electrical data | Supply
Norm operating voltage EN 61131-2
Operating voltage US DC 24 V
Operating voltage UA DC 24 V
Total current UA max. 16 A
Total current US max. 16 A
Electrical data | Input
Overload resistant yes
Short-circuit protected yes
Type input PNP, for 3-wire sensors or mechanical switches
Sensor current US per input max. 0,2 A
Electrical data | Output
Overload resistant yes
Short-circuit protected yes
Output current per pin max. 1,6 A
Lamp load 10 W
Total current output max. 9 A
Industrial communication
Supported protocol PROFINET
Industrial communication | Profinet
Number of active connections (IO controller) max. 2
FSU (Fast-Start-Up) yes
Fast start up time max. 0,5 s
IRT (network communication) yes
MRP client yes
PROFINET Netload Class III
PROFINET addressing DCP
PROFINET conformance class C
PROFINET specification V2.3
Shared device/input yes
Diagnostics
Actuator warning per channel via LED and BUS
Diagnostic No voltage, Under voltage
Diagnostic via BUS per module and channel
Diagnostic via LED per module and channel
Short circuit diagnosis yes
LED display Ethernet connection/data traffic
Cable break per port
Overload diagnosis yes
Device protection | Electrical
Degree of protection (EN IEC 60529) IP67
Mechanical data | Mounting data
Suitable for mounting type 2-hole screw mounting
Height 37 mm
Width 63 mm
Depth 225 mm
Environmental characteristics | Climatic
Operating temperature min. -25 °C
Operating temperature max. 60 °C
Storage temperature min. -25 °C
Storage temperature max. 70 °C

Connection types
Connection type 1 X4-X7
Connection type 2 XD1
Connection type 3 XD2
Connection type 4 XF2
Connection type 1
Family construction form M12
Gender female
Color contact carrier black
Coding A
No. of poles 5
Connection type 2
Family construction form M12
Gender male
Color contact carrier black
Coding L
No. of poles 5
Connection type 3
Family construction form M12
Gender female
Color contact carrier black
Coding L
No. of poles 4
Connection type 4
Mounting method inserted, screwed
Tightening torque 0,6 Nm
Family construction form M12
Gender female
Color contact carrier black
Coding D
No. of poles 4

ECLASS-6.0 27242604
ECLASS-6.1 27242604
ECLASS-7.0 27242604
ECLASS-8.0 27242604
ECLASS-9.0 27242604
ECLASS-10.1 27242604
ECLASS-11.1 27242604
ECLASS-12.0 27242604
ETIM-5.0 EC001599
GTIN 4048879735780
Pakkestørrelse 1
Tolltariffnummer 85389099


Data om artikkel
  • Last ned Produkt-PDF
  • Last ned Approval: UL Listed CA 55160_E201820-NRAQ7_ulc_z_a.pdf
  • Last ned Approval: UL Listed US 55160_E201820-NRAQ_ul_z_a.pdf
  • Last ned Certificate: PROFIenergy 55160_Z40267-11.07.2025-v2.35-PROFIenergy_pbe_z_b.pdf
  • Last ned Certificate: ProfiNet  55160_Z12772-11.07.2025-v2.33_pn_z_c.pdf
  • Last ned Configuration Files: GSDML 55530_MVK-M_KF0_x_16.zip
  • Last ned Construction files: DXF 55160_dxf_x_a.7z
  • Last ned Construction files: P8 55160_p8_2_10.zip
  • Last ned Construction files: STP 55160_stp_x_c.zip
  • Last ned Document: Installation guide 55160_ina_x_12.zip
  • Last ned Document: Product data 55160_pd_x_12.zip
  • Last ned Document: User manual 55180_hdb_x_13.zip
  • Last ned Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf
  • Last ned Information: Certificate of conformity Murrelektronik GmbH 07-11-20_(10) RoHS REACh exception 6c 7a 7cI_DoC_z_a.pdf
  • Last ned Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Last ned Information: Certificate of conformity UKCA 55160_14-08.19_uk_z_a.pdf
  • Last ned Information: EU declaration of conformity 55160_14-08.19_ce_z_a.pdf
  • Last ned Software: Firmwareupdatetool 10500955_AutoUpdateX_TB3_x_31.zip
