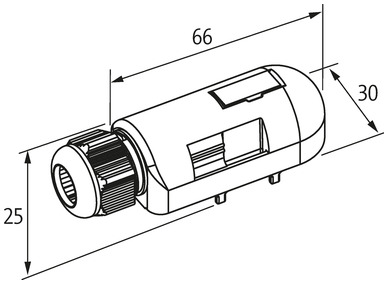

PRE-WIRED CAP FOR EXACT8, 8XM8, 3 POLE
15.0m PUR 8x0,34+2x0,75, UL/CSA
| Artikkelnummer: | 8000-88049-3591500 |
| Vekt: | 1.58 kg |
| Opprinnelsesland: | CZ |
Ikke på lager - Kontakt oss for leveringsdato
Beskrivelse
15.0 m
Tekniske data
Technical Data
| Housing | Plastic, flame retardant |
|---|---|
| Total current | max. 8 A |
General data
| Temperature range | -20...+80 °C, depending on cable quality |
|---|
Cables
| No./diameter of wires | 8× 0.34 + 2× 0.75 mm² |
|---|---|
| Wire isolation | TPE (vi, bk, rd, pk, gr, ye, gn, wh+br, bl) |
| C-track properties | 5 Mio. |
| Outer Ø | 9.2 mm ±5% |
| Cable number | 359 |
| Color jacket | gray |
| Jacket Color | gray |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -5...+60 °C |
| Bend radius (fixed) | 5× outer Ø |
| Bend radius (moving) | 10× outer Ø |
| Material jacket | PUR (UL/CSA) |
| Product article number of manufacturer | 8000-88049-3591500 |
|---|
Handelsinformasjon
| ECLASS-6.0 | 27143423 |
|---|---|
| ECLASS-6.1 | 27279219 |
| ECLASS-7.0 | 27279219 |
| ECLASS-8.0 | 27279219 |
| ECLASS-9.0 | 27440108 |
| ECLASS-10.1 | 27440108 |
| ECLASS-11.1 | 27440108 |
| ECLASS-12.0 | 27440108 |
| ETIM-5.0 | EC002585 |
| EAN | 4048879054522 |
| Pakkestørrelse | 1 |
| Tolltariffnummer | 85444290 |
