SAFETY WIRING SYSTEM

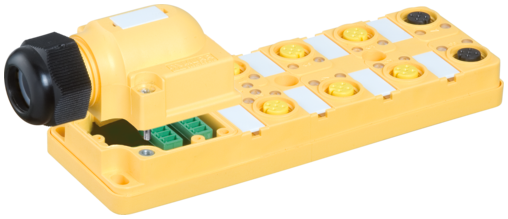

Distributor Box
Artikkelnummer: 8000-98752-0000000
Vekt: 0.191 kg
Opprinnelsesland:  DE
Ikke på lager - Kontakt oss for leveringsdato
 Produktsammenlikning
Listepris per stykk:

Beskrivelse

8-way distribution box
without electrical feedback
Replaces identical product (Art.No. 27057)
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Certificate
Certificate

Technical Data
Operating voltage 24 V DC (EN 61131-2)
Material group EN 60664-1 over voltage, category III
Locking of ports Screw thread (M12×1 mm)
Operating current (black females) max. per 1 A
Operating current (chain) max. per 1 A
Isolation resistance min. 1000 MΩ
General data
Temperature range -20...+80 °C
Protection IP67 inserted and tightened (EN 60529)
Product article number of manufacturer 8000-98752-0000000

ECLASS-6.0 27143423
ECLASS-6.1 27279219
ECLASS-7.0 27279219
ECLASS-8.0 27279219
ECLASS-9.0 27440108
ECLASS-10.1 27440111
ECLASS-11.1 27440111
ECLASS-12.0 27440111
ETIM-5.0 EC002585
EAN 4048879353380
Pakkestørrelse 1
Tolltariffnummer 85369010


Data om artikkel
  • Last ned Datablad
  • Last ned Construction files: DXF 27775_dxf_x_a.zip
  • Last ned Construction files: P8 8000-98752-0000000_p8_2_10.zip
  • Last ned Construction files: STP 27775_stp_x_a.zip
  • Last ned Document: Installation guide 8000-98752-0000000_ina_2_10.pdf
  • Last ned Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Last ned Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Last ned Information: Certificate of conformity Murrelektronik GmbH 07-11-20_(10) RoHS REACh exception 6c 7a 7cI_DoC_z_a.pdf
  • Last ned Information: EU declaration of conformity 8000-98752-0000000_1409-04.16_ce_z_b.pdf
