EXACT12, 4XM12, 5-POLE, BASIC HOUSING

Without homerun-cable

Artikkelnummer:	8000-84500-0000000
Vekt:	0.078 kg
Opprinnelsesland:	DE

Ikke på lager - Kontakt oss for leveringsdato

Find similar Product

Spørsmål

Anbefal produkt

Produktsammenlikning

Beskrivelse

4-way, 5-pole
Form PNP
Screw plug-in terminals
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.

Tekniske data

Technical Data

Operating voltage	24 V DC
Operating current per contact	max. 4 A
Protection	IP65/IP67
Housing	Plastic, flame retardant
Total current	max. 8 A

General data

Temperature range	-20...+70 °C

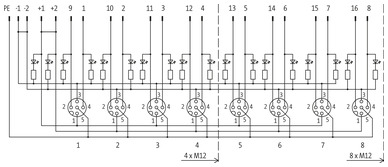

Contact Layout

PIN 1	(+)
PIN 2	(NC)/(S2)
PIN 3	(-)
PIN 4	(NO)/(S1)
PIN 5	(Earth)
	LED (green): Power / LED (yellow): (S1) / LED (white): Signal (S2)

Product article number of manufacturer	8000-84500-0000000

Handelsinformasjon

ECLASS-6.0	27279219
ECLASS-6.1	27279219
ECLASS-7.0	27279219
ECLASS-8.0	27279219
ECLASS-9.0	27440108
ECLASS-10.1	27440111
ECLASS-11.1	27440111
ECLASS-12.0	27440111
ETIM-5.0	EC002585
EAN	4048879055857
Pakkestørrelse	1
Tolltariffnummer	85369010
