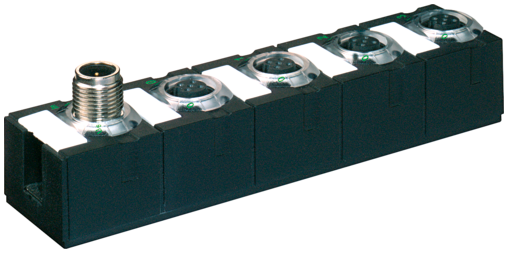

CUBE67 I/O COMPACT MODULE
Bildet kan avvike fra produktet

CUBE67 I/O COMPACT MODULE

4 analog outputs (U)
Artikkelnummer: 56710
Produktalternativ:    56711
Vekt: 0.14 kg
Under produksjon
 Produktsammenlikning
Listepris per stykk:

Du liker kanskje også

General data
Mounting method 2-hole screw mounting
Temperature range 0...+55 °C (storage temperature -20...+75 °C)
Protection IP67
Dimensions H×W×D 126×30×34.5 mm
Output
Supply voltage 24 V DC (EN 61131-2), via system connection (max. 4 A)
Resolution (analog) 11 Bit + sign
Conversion time (analog) approx. 1 ms (per channel)
Actuator supply UA 24 V DC (EN 61131-2), max. 1.6 A (M12 female), short-circuit and overload protected
Accuracy max. ±0.5% (of range limit)
Internal communication
LED display US: sensor supply and internal supply voltage (green: OK); UA: actuator supply (green: OK)
Current consumption max. 50 mA
Voltage output signals
Input range ±10 V DC, 0...10 V DC
Load min. 500 Ω
Connections
Fieldbus via internal system connection
Sensor-system/actuator supply via internal system connection (max. 2× 4 A)
I/O ports M12 (female) 5-pole, A-coded
Diagnostic
Communication status via LED
Diagnostic via LED per module and channel
Diagnostic via BUS per module and channel
Actuator warning per channel via LED and BUS
Monitoring - under voltage yes
Monitoring - no voltage yes
Wire break upper/lower limit overload per channel via LED and BUS
Short-circuit and overload yes
Handelsinformasjon
EAN 4048879048248
eClass 27242601
Opprinnelsesland DE
Pakkestørrelse 1.000
Tolltariffnummer 85389099

Data om artikkel
  • Last ned Datablad
  • Last ned EPUP-20_CHR_x_1.pdf
  • Last ned Approvals and certificates 56710_E201820-NRAQ_ul_z_b.pdf
  • Last ned Approvals and certificates 56710_E201820_NRAQ7_ulc_z_a.pdf
  • Last ned Approvals and certificates 56710_986-04.16_ce_z_b.pdf
  • Last ned Drawing Files 56710_p8_2_50.zip
  • Last ned Drawing Files 56710_stp_x_a.zip
  • Last ned Drawing Files 56610_dxf_x_a.zip
  • Last ned Drawing Files 56610_stp_x_a.zip
  • Last ned Installation Instructions 56600_ina_6_37.pdf
  • Last ned Manuals 56970_hdb_x_25.zip
  • Last ned Manuals 56971_hdb_x_35.zip
  • Last ned Manuals 56975_hdb_x_11.zip
