Cube67 FSC Connector Set
with mounting socket

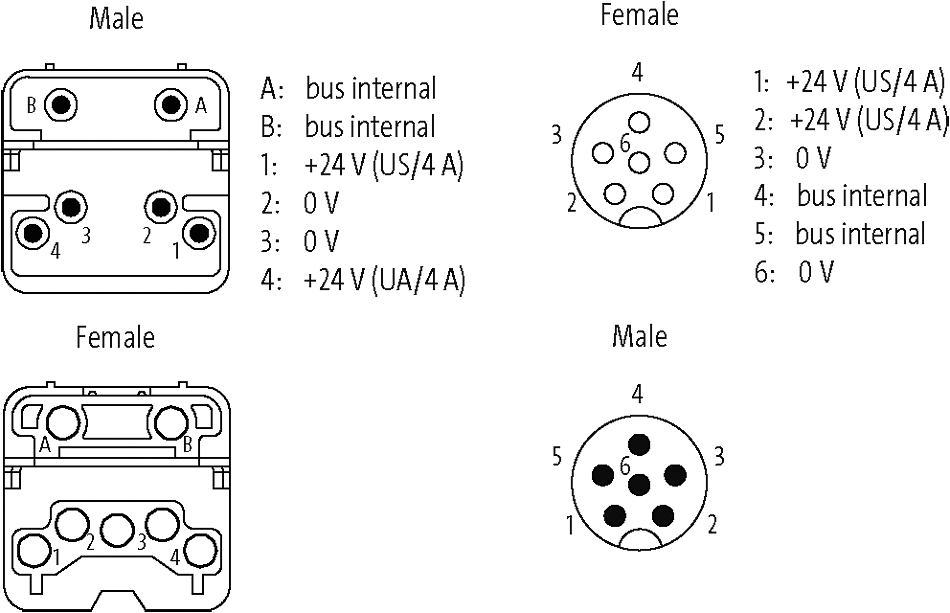

Han-Brid®, 6-pole – M12, 6-pole
Cable length (120 mm)
with mounting socket
Han-Brid®, 6-pole – M12, 6-pole
Cable length (120 mm)
General data
| Protection | IP65 |
|---|---|
| Connection | (male/female) Han-Brid®, 6-pole – M12, 6-pole |
| Mounting method | Flange, hole spacing 30 mm, bore 3.3 mm |
| Dimensions H×W×D | 30×410×30 mm |
| Temperature range | -25...+85 °C |
Technical Data
| Operating voltage | 24 V DC |
|---|---|
| Operating current | max. 4 A |
| Mating cycles | min. 500 |
Cables
| No./diameter of wires | 4× 0.5 + 2× 0.25 mm² |
|---|---|
| Wire isolation | TPE (bl, wh, br, bk), (gr, pk) |
| C-track properties | 5 Mio. |
| Jacket Color | green |
| Material (jacket) | PUR (UL/CSA) |
| Outer Ø | 7.9 mm ±5% |
| Bend radius (moving) | 10× outer Ø |
| Temperature range (fixed) | -50...+80 °C |
| Temperature range (mobile) | -40...+80 °C |
| Cable identification | 802 |
| Cable weight [g/m] | 95,70 |
| Material (wire) | Cu wire, bare |
| Single wire Ø (core) | 0.15 mm (0.5 mm²); 0.1 mm (0.25 mm²) |
| Construction (core) | 28× 0.15 mm (0.5 mm²); 32× 0.1 mm (0.25 mm²); (multi-strand wire class 6) |
| Diameter (core) | 4× 0.5 + 2× 0.25 mm² |
| AWG | similar to AWG 20 (0.5 mm²); similar to AWG 24 (0.25 mm²) |
| Material (wire isolation) | TPE-E |
| Shore hardness (wire isolation) | 55 ±5 D |
| Wire-Ø incl. isolation | 1.5 mm ±5% (0.5 mm²); 1.4 mm ±5% (0.25 mm²) |
| Color/numbering of wires | (bl, wh, br, bk) + (gr, pk) |
| Shield | yes |
| optical shield cover | min. 80% |
| Material (jacket) | PUR |
| Material property (jacket) | CFC-, halogen-, cadmium-, silicone-free, matt, low-adhesion, machine easy to process, abrasion-resistant |
| Shore hardness (jacket) | 89 ±5 A |
| Outer-Ø (jacket) | 7.9 mm ±5% |
| Color (jacket) | green |
| Nominal voltage | 300 V AC |
| Test voltage | 1500 V (wire/wire); 1200 V (wire/shield) |
| Temperature range (fixed) | -50...+80 °C |
| Temperature range (mobile) | -40...+80 °C |
| Bend radius (fixed) | 5× outer Ø |
| Bend radius (moving) | 10× outer Ø |
| No. of bending cycles (C-track) | max. 5 Mio. (25 °C) |
| Traversing distance (C-track) | max. 10 m |
| Travel speed (C-track) | max. 2 m/s |
| Torsion stress | ±180°/m |
Handelsinformasjon
| EAN | 4048879540810 |
|---|---|
| eClass | 27143423 |
| Opprinnelsesland | DE |
| Pakkestørrelse | 1 |
| Tolltariffnummer | 85444290 |
