Xelity 4TX managed switch 4 port 1000Mbit ProfiNet IP20 58821
Bildet kan avvike fra produktet

Xelity 4TX managed switch 4 port 1000Mbit ProfiNet IP20

Artikkelnummer: 58821
Vekt: 0.162 kg
Opprinnelsesland:  DE
Tilgjengelig
Find similar Product
Spørsmål
 Anbefal produkt
 Produktsammenlikning
Listepris per stykk:
legg til Easy-Import-Export

Beskrivelse

The Xelity product range is intended for use in industrial environments. The switches have TX ports for twisted pair cables
4-port PROFINET managed switch in IP20 plastic housing
4 RJ45 ports with Gigabit transmission speed
Power connection via push-in terminals
Connection cables are in the online shop under "Connection Technology".
Certificate
Certificate
Certificate

Electrical data | Supply
Operating voltage DC 24 V
Operating voltage DC min. 9 V
Operating voltage DC max. 30 V
Idle current min. 82,5 mA
Idle current max. 137,5 mA
Power consumption max. 2,8 W
Current consumption max. 300 mA
Industrial communication
Supported protocol PROFINET
Data transmission rate max. 100 MBit/s
Industrial communication | Ethernet functionality
Auto-crossover yes
Auto-negotiation yes
duplex Full duplex
LLDP frames forwarding
Ring topology RSTP, MRP, STP
Switch type managed
Industrial communication | Profinet
FSU (Fast-Start-Up) no
MRP client yes
PROFINET Netload Class III
PROFINET addressing DCP
PROFINET conformance class B
PROFINET specification V2.4
Shared device/input no
Industrial communication | IIoT functions
Webserver HTTP, HTTPS
Switch Management
Addressing BOOTP/DHCP client, DCP, SSH-Befehlszeile
RSTP (IEEE 802.1D-2004, IEC 62439-1) Default on
Simple Network Management Protocol (SNMP) v1 + v2c + v3 (default active)
VLAN managed (IEEE 802.1Q) yes
VLANs max. (IEEE 802.1Q) 64
Time synchronization Real-time clock, NTP client
Diagnostics
Alarm contact yes
Diagnostic No voltage
Remote maintenance Open VPN client
LED display Ethernet connection/data traffic
Port mirroring 1:1, N:1
RMON yes
SNMP traps yes
Syslog yes
Device protection | Electrical
Degree of protection (EN IEC 60529) IP20
Invers-polarity protection yes
Over voltage protection yes
Mechanical data | Material data
Color housing gray
Material housing Plastic
Mechanical data | Mounting data
Mounting method geschnappt
Suitable for mounting type Mounting rail TH35, (EN 60715)

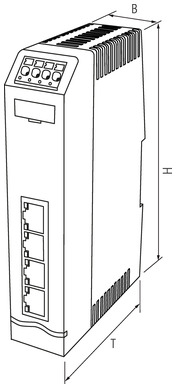

Height 140 mm
Width 30 mm
Depth 85,1 mm
Environmental characteristics | Climatic
Operating temperature min. -40 °C
Operating temperature max. 75 °C
Derating from 70 °C
Storage temperature min. -40 °C
Storage temperature max. 85 °C
Relative humidity min. (operation) 5 %
Relative humidity max. (operation) 95 % no condensation
Transport temperature min. -40 °C
Transport temperature max. 85 °C

Connection types
Connection type 1 4
Connection type 1
Family construction form RJ45
Gender female
Color contact carrier black
No. of poles 8
Connection type 2
Connection Spring clamp terminals FK
Family construction form terminal
Gender female
Color contact carrier green
No. of poles 4

ECLASS-6.1 19170106
ECLASS-7.0 19170106
ECLASS-8.0 19170106
ECLASS-9.0 19170401
ECLASS-10.1 19170401
ECLASS-11.1 19170401
ECLASS-12.0 19170401
GTIN 4065909004678
Pakkestørrelse 1
Tolltariffnummer 85176200


Data om artikkel
  • Last ned Produkt-PDF
  • Last ned Approval: KC 58821_R-R-MuR-58821_kc_z_a.pdf
  • Last ned Approval: UL Listed CA 58821_E201820_NRAQ7_ulc_z_a.pdf
  • Last ned Approval: UL Listed US 58821_E201820_NRAQ_ul_z_a.pdf
  • Last ned Certificate: ProfiNet  58821_Z13284-17.03.25-v2.4_pn_z_a.pdf
  • Last ned Configuration Files: GSDML 58821_XELITY_PN_KF0_x_11.zip
  • Last ned Construction files: DXF 58810_dxf_x_a.zip
  • Last ned Construction files: P8 58821_p8_2_11.zip
  • Last ned Construction files: STP 58810_stp_x_a.zip
  • Last ned Document: Installation guide 58820_ina_x_11.zip
  • Last ned Document: Product data 58821_pd_x_13.zip
  • Last ned Document: User manual 58821_hdb_x_13.zip
  • Last ned Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Last ned Information: Certificate of conformity Murrelektronik GmbH 05-02-23_(2) China RoHS 2 20EEP_DoC_z_a.pdf
  • Last ned Information: Certificate of conformity Murrelektronik GmbH 11-11-20_(7) RoHS REACh exception 7a 7cI_DoC_z_a.pdf
  • Last ned Information: Certificate of conformity UKCA 58821_04-04.22_uk_z_a.pdf
  • Last ned Information: EU declaration of conformity 58821_04-04.22_ce_z_a.pdf
  • Last ned Information: MTTF Report 58821_SN29500(40°C)-Berechnung_mttf_p_a.pdf
