TREE PROFINET managed Switch  5x10/100BT IP67  plastic M12  58184
Bildet kan avvike fra produktet

TREE PROFINET managed Switch 5x10/100BT IP67 plastic M12

Artikkelnummer: 58184
Vekt: 0.26 kg
Opprinnelsesland:  DE
Kontakt oss for leveringsdato
 Produktsammenlikning
Listepris per stykk:
legg til Easy-Import-Export

Beskrivelse

5 ports
PROFINET - Managed Switch
Connection cables are in the online shop under "Connection Technology".
Certificate
Certificate
Certificate
Certificate
Bus technologies

Electrical data | Supply
Operating voltage DC min. 9,5 V
Operating voltage DC max. 31,5 V
Current consumption min. 97,5 mA
Current consumption max. 162,5 mA
Industrial communication
Supported protocol PROFINET
Data transmission rate max. 100 MBit/s
Industrial communication | Ethernet functionality
Auto-crossover yes
Auto-negotiation yes
duplex Full duplex
LLDP frames forwarding
Ring topology RSTP, MRP, STP
Switch type managed
Industrial communication | Profinet
FSU (Fast-Start-Up) no
MRP client yes
PROFINET Netload Class I
PROFINET addressing DCP
PROFINET conformance class B
PROFINET specification V2.3
Shared device/input no
Industrial communication | IIoT functions
Webserver HTTP, HTTPS
Switch Management
Addressing BOOTP/DHCP client, DCP, SSH-Befehlszeile
RSTP (IEEE 802.1D-2004, IEC 62439-1) Default on
Simple Network Management Protocol (SNMP) v1 + v2c + v3 (default active)
VLAN managed (IEEE 802.1Q) no
Time synchronization Real-time clock, NTP client
Diagnostics
Alarm contact no
Diagnostic No voltage
Remote maintenance Open VPN client
LED display Ethernet connection/data traffic
Port mirroring 1:1
RMON yes
SNMP traps yes
Syslog yes
Device protection | Electrical
Degree of protection (EN IEC 60529) IP67
Mechanical data | Material data
Color housing black
Material housing Plastic
Mechanical data | Mounting data
Suitable for mounting type 3 hole screw mounting
Height 105 mm
Width 60 mm
Depth 40 mm
Environmental characteristics | Climatic
Operating temperature min. 0 °C
Operating temperature max. 60 °C
Storage temperature min. -40 °C
Storage temperature max. 85 °C

Connection types
Connection type 1 4, 5
Connection type 1
Mounting method inserted, screwed
Tightening torque 0,6 Nm
Family construction form M12
Gender female
Color contact carrier black
Coding D
No. of poles 4

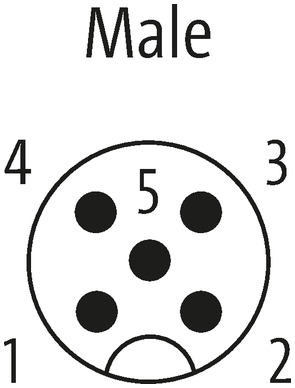

Connection type 2
Family construction form M12
Gender male
Color contact carrier black
Coding A
No. of poles 5

ECLASS-6.0 19170106
ECLASS-6.1 19170106
ECLASS-7.0 19170106
ECLASS-8.0 19170106
ECLASS-9.0 19170401
ECLASS-10.1 19170401
ECLASS-11.1 19170401
ECLASS-12.0 19170401
ETIM-5.0 EC000734

GTIN 4048879720311
Pakkestørrelse 1
Tolltariffnummer 85176200


Data om artikkel
  • Last ned Produkt-PDF
  • Last ned Approval: EAC 58184_ЕАЭС N RU Д-DE.РА03.В.34436-2026.12.07_eac_z_b.pdf
  • Last ned Approval: UL Listed CA 58184_E201820-NRAQ7_ulc_z_a.pdf
  • Last ned Approval: UL Listed US 58184_E201820-NRAQ_ul_z_a.pdf
  • Last ned Certificate: ProfiNet  58184_Z12080-05.04.2024-v2.33_pn_z_b.pdf
  • Last ned Configuration Files: GSDML 58184_SWITCH_KF0_x_11.zip
  • Last ned Construction files: DXF 58180_dxf_x_a.zip
  • Last ned Construction files: P8 58184_p8_2_60.zip
  • Last ned Construction files: STP 58180_stp_x_a.zip
  • Last ned Document: Installation guide 58183_ina_x_11.zip
  • Last ned Document: User manual 58184_hdb_x_10.zip
  • Last ned Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Last ned Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Last ned Information: Certificate of conformity Murrelektronik GmbH 09-11-20_(3) RoHS REACh exception 6c 7cI_DoC_z_a.pdf
  • Last ned Information: Certificate of conformity UKCA 58184_24-05.18_uk_z_a.pdf
  • Last ned Information: EU declaration of conformity 58184_24-05.18_ce_z_a.pdf
  • Last ned Information: MTTF Report 58184_MIL-HDBK-217F(25°C)-Berechnung_mttf_p_a.pdf
