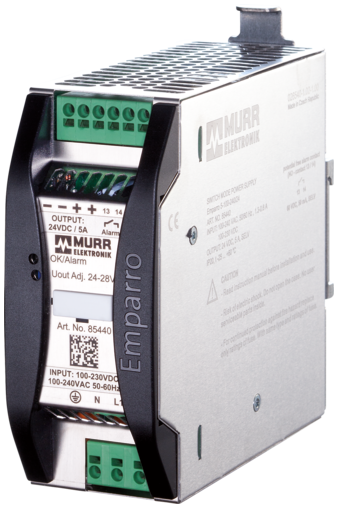

EMPARRO POWER SUPPLY 1-PHASE, PRIMARY SWITCHED

IN: 100-240VAC OUT: 24-28VDC/5A
Artikkelnummer: 9000-11112-0921111
Vekt: 0.66 kg
Opprinnelsesland:  CZ
Tilgjengelig
 Produktsammenlikning
Listepris per stykk:

Beskrivelse

INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 24...28 V DC
Current: 5 A
Varnished board
Certificate
Certificate
Certificate
Certificate
Certificate

General data
Standards IEC 61010-2-201, EN 61204-3, EN 55011 B, EN 61000-3-2, SEMI F47
Mounting method DIN-rail mountable TH35 (EN 60715)
Temperature range -40...+60 °C, ...+70 °C derating (storage temperature -40...+80 °C)
Relative humidity 5...95%, no condensation
Protection IP20
Efficiency 92.7% (110 V AC); 94.5% (230 V AC)
Connection Push-In spring clamp terminals

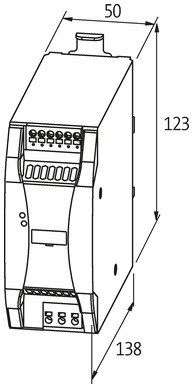

Dimensions H×W×D 123×50×138 mm
Output
Output voltage 24 V DC (SELV), ±1%; 24...28 V adjustable
Power Boost Iout N × 150% (min. 4 s)
LED display LED (green): OK; LED (red): overload, overheating or short-circuit
Output current 5 A
Mains failure bridging time min. 30 ms (100 V AC); 5 A (24 V DC)
Ripple max. 50 mV eff/rms
Spikes max. 200 mV ss/pp
Unit protection short-circuit and overload protected
Parallel usage/serial usage max. 5 units/max. 2 units
Input
Input voltage 85...265 V AC/90...250 V DC
Input current 1.3 A (100 V AC); 0.61 A (240 V AC)
Inrush current after 1 ms max. 5.5 A (230 V AC)
Power factor 0.87 (230 V AC)
Frequency 50...60 Hz
Input fuse (internal) 6.3 A (T)
Product article number of manufacturer 9000-11112-0921111

ECLASS-6.0 27049002
ECLASS-6.1 27049002
ECLASS-7.0 27049002
ECLASS-8.0 27049002
ECLASS-9.0 27040701
ECLASS-10.1 27040701
ECLASS-11.1 27040701
ECLASS-12.0 27040701
ETIM-5.0 EC002540
EAN 4048879446648
Pakkestørrelse 1
Tolltariffnummer 85044095


Data om artikkel
  • Last ned Datablad
  • Last ned Approval: UL Listed CA 9000-11112-0921111_E200364_NMTR7_ulc_z_a.pdf
  • Last ned Approval: UL Listed US 9000-11112-0921111_E200364-NMTR_ul_z_b.pdf
  • Last ned Approval: UL Registered CA 9000-11112-0921111_E181433-QQGQ8_urc_z_b.pdf
  • Last ned Approval: UL Registered US 9000-11112-0921111_E181433-QQGQ2_ur_z_b.pdf
  • Last ned Construction files: P8 9000-11112-0921111_p8_2_51.zip
  • Last ned Document: Installation guide 9000-11112-0921111_ina_4_16.pdf
  • Last ned Document: Product data 9000-11112-0921111_pd_x_13.zip
  • Last ned Information: Certificate of conformity Murrelektronik GmbH 05-02-23_(2) China RoHS 2 20EEP_DoC_z_a.pdf
  • Last ned Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Last ned Information: Certificate of conformity Murrelektronik GmbH 13-11-20_(2) RoHS REACh exception 7cI_DoC_z_c.pdf
  • Last ned Information: Certificate of conformity UKCA 9000-11112-0921111_12-10.20_uk_z_a.pdf
  • Last ned Information: EU declaration of conformity 9000-11112-0921111_12-10.20_ce_z_c.pdf
  • Last ned Information: MTBF Report 9000-11112-0921111_SN29500(40°C)-BerechnungV1.4_mtbf_p_a.pdf
  • Last ned Information: MTTF Report 9000-11112-0921111_SN29500(40°C)-BerechnungV1.4_mttf_p_a.pdf
