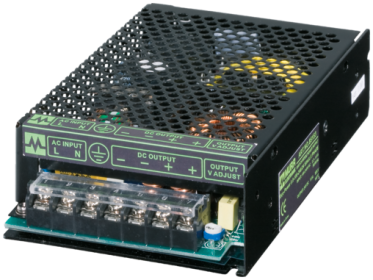

ECO-POWER POWER SUPPLY 1-PHASE,
Bildet kan avvike fra produktet

ECO-POWER POWER SUPPLY 1-PHASE,

IN: 90-132 VAC/180-264 VAC OUT: 24V/10ADC
Artikkelnummer: 85155
Vekt: 1.1 kg
Tilgjengelig
 Produktsammenlikning
Listepris per stykk:

Du liker kanskje også

INPUT: 100...120 V AC/200...240 V AC
OUTPUT: 24 V DC ±1%
Current: 10 A
General data
Standards IEC 61010-2-201, EN 61204-3, EN 55011 B
Mounting method screw fixing, M4
Efficiency 84% (115 V AC); 85% (230 V AC)
Relative humidity 20...90%, no condensation
Dimensions H×W×D 50×115×230 mm
Temperature range 0...+40 °C, ...+50 °C derating (storage temperature -20...+85 °C)
Output
Output voltage 24 V DC ±1%
Output current 10 A (+40 °C); 8 A (+50 °C)
Mains failure bridging time min. 15 ms (115 V AC); min. 15 ms (230 V AC)
Ripple max. 30 mV eff/rms
Unit protection short-circuit and overload protected
Spikes max. 200 mV ss/pp
LED display LED (green) for output voltage
Parallel usage/serial usage no/yes (max. 2 units)
Input
Input voltage 100...120 V AC/200...240 V AC
Input current 4.6 A (115 V AC); 2.8 A (230 V AC)
Inrush current after 1 ms max. 20 A
Primary fusing external max. 16 A
Frequency 50...60 Hz
Handelsinformasjon
EAN 4048879080408
eClass 27049002
Opprinnelsesland CN
Pakkestørrelse 1
Tolltariffnummer 85044082

Data om artikkel
  • Last ned Datablad
  • Last ned Approvals and certificates 85155_20-10.20_ce_z_d.pdf
  • Last ned China RoHS information EPUP-25_CHR_x_1.pdf
  • Last ned Drawing Files 85155_dxf_x_a.zip
  • Last ned Drawing Files NETZGERAETE.zw1
  • Last ned Drawing Files 85155_stp_x_a.zip
  • Last ned Installation Instructions 85155_ina_4_15.pdf
