EUROCARD HOLDER

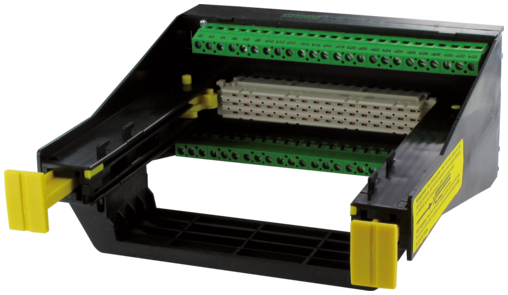

SKP 48/1 F
| Artikkelnummer: | 63020 |
| Vekt: | 0.332 kg |
| Opprinnelsesland: | CZ |
Kontakt oss for leveringsdato
Beskrivelse
Screw terminals
48-pole F (EN 60603)
Row z, b, d
250 V AC
With the vertical snap adapter SASA 135 Art.-No. 63900 the holder can be mounted at right-angles on the rail.
The D2 size is for a card without a front plate.
To insert the card first press down the 2 yellow buttons. Then slide the Eurocard into the guide slots pushing until fully engaged. The card is now locked into position. It can be removed by pressing down on the 2 yellow buttons.
48-pole F (EN 60603)
Row z, b, d
250 V AC
With the vertical snap adapter SASA 135 Art.-No. 63900 the holder can be mounted at right-angles on the rail.
The D2 size is for a card without a front plate.
To insert the card first press down the 2 yellow buttons. Then slide the Eurocard into the guide slots pushing until fully engaged. The card is now locked into position. It can be removed by pressing down on the 2 yellow buttons.
Tekniske data
Electrical data | Supply
| Operating voltage AC | 250 V |
|---|---|
| Operating current max. | 4 A |
Installation
| Connection cross-section solid max. | 4 mm² |
|---|
Installation | Pin assignment
| No. of poles | 48 |
|---|
Device protection | Electrical
| Overvoltage category (EN 60664-1) | I |
|---|
Device protection | Media
| Flame resistance | flame retardant |
|---|
Mechanical data
| Type of socket connector | F (EN 60603) |
|---|
Mechanical data | Material data
| Material housing | Plastic |
|---|
Mechanical data | Mounting data
| Mounting method | screwed, geschnappt |
|---|---|
| Suitable for mounting type | (EN 60715), mounting rail |
| Height | 137 mm |
| Width | 63 mm |
| Depth | 170 mm |
Classifications
| ECLASS-6.0 | 27260710 |
|---|---|
| ECLASS-6.1 | 27260704 |
| ECLASS-7.0 | 27440402 |
| ECLASS-8.0 | 27440402 |
| ECLASS-9.0 | 27440402 |
| ECLASS-10.1 | 27440402 |
| ECLASS-11.1 | 27460201 |
| ECLASS-12.0 | 27460201 |
| ETIM-5.0 | EC002780 |
Handelsinformasjon
| GTIN | 4048879042154 |
|---|---|
| Pakkestørrelse | 1 |
| Tolltariffnummer | 85366990 |
