M12 female 0° A-cod. with cable  7000-15001-4140450
Bildet kan avvike fra produktet

M12 female 0° A-cod. with cable

PUR 2x0.5 gy UL/CSA+drag ch. 4.5m
Artikkelnummer: 7000-15001-4140450
Vekt: 0.148 kg
Opprinnelsesland:  DE
ikke tilgjengelig
 Produktsammenlikning
Listepris per stykk:
legg til Easy-Import-Export

Beskrivelse


Cube67
Female straight
M12, 2-pole
A-coded
Actuator supply external
Art-No. 7005 - M12 Lite - (plastic hexagonal screw) on request
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Certificate
Certificate

Cable length 4,5 m
Technical Data
Operating voltage max. 30 V AC/DC
Operating voltage (only UL listed) 30 V AC/DC
Rated surge voltage 0.8 kV
Operating current per contact max. 4 A
No. of poles 2
Material group IEC 60664-1, category I
Coding A-coded
LED display no
Locking of ports Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Protection IP67 inserted and tightened (EN 60529)
Material PUR
Locking material Zinc die casting, matte nickel plated
suitable for corrugated tube (internal Ø) 10 mm
Compression gland M12 (SW13)
General data
Mounting method inserted, tightened
Material contact Copper alloy
Material contact surface Au
Material gasket FKM
Pollution Degree 3
Stripping length (jacket) 20 mm
Temperature range -25...+85 °C, depending on cable quality

Cable
No./diameter of wires 2× 0.5 mm²
Wire isolation PP (br, bl)
C-track properties 10 Mio.
Outer Ø 4.4 mm ±5%
Cable identification 414
Cable Type 3 (PUR)
Approval (cable) cURus (AWM-Style 20549/10493); CE conform
Cable weight [g/m] 30,8 g
Material wire Cu wire, bare
Resistor (core) max. 39 Ω/km (20 °C)
Single wire Ø (core) 0.19 mm
Construction (core) 19× 0.18 mm
Diameter (core) 2× 0.5 mm²
AWG similar to AWG 20
Material wire isolation PP
Material property wire insulation CFC-, halogen-, cadmium-, silicone- and lead-free
Shore hardness wire isolation 70 ±5 D
Wire-Ø incl. isolation 1.4 mm ±5%

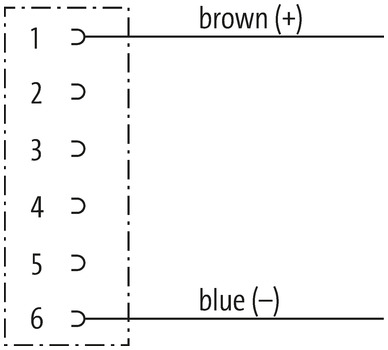

Color/numbering of wires br, bl
Stranding combination 2 wires twisted
Shield no
Material jacket PUR
Material property (jacket) CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Shore hardness jacket 90 ±5 A
Outer-Ø (jacket) 4.4 mm ±5%
Color jacket gray
Jacket Color gray
chemical resistance good resistance to oil, gasoline and chemicals (EN 60811-404)
thermal resistance flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Nominal voltage 300 V AC
Test voltage 2500 V AC
Current load capacity to DIN VDE 0298-4
Temperature range (fixed) -40...+80 °C
Temperature range (fixed) -40...+80 °C, (+90 °C at max. 10 000 operating hours)
Temperature range (mobile) -25...+80 °C
Temperature range (mobile) -25...+80 °C, (+90 °C at max. 10 000 operating hours)
Bend radius (fixed) 5× outer Ø
Bend radius (moving) 10× outer Ø
Bend radius (moving) 10× outer Ø
No. of bending cycles (C-track) max. 10 Mio. (25 °C)
Travel speed (C-track) max. 3 m/s
Acceleration (C-track) max. 10 m/s²
Torsion stress ±180°/m
No. of torsion cycles max. 2 Mio. (25 °C)
Torsion speed 35 cycles/min
Material jacket PUR (UL/CSA)

Pakkestørrelse 1
Tolltariffnummer 85444290
