Illuminated Emergency-stop pushbutton with 2 positive opening contacts
in a IP65 enclosure
| Art.No.: | 69043 |
| Weight: | 0.195 kg |
| Country of origin: | DE |
Available
Description
E-Stop 72 2NC L M12(8)
with M12 connection
8-pole
Emergency-Stop button
2 NC (positively-opening)
LED-Ring can be lit
with M12 connection
8-pole
Emergency-Stop button
2 NC (positively-opening)
LED-Ring can be lit
Technical Data
Electrical data
| Operating voltage AC/DC LED illumination min. | 12 V |
|---|---|
| Operating voltage AC/DC LED illumination max. | 30 V |
| Operating current LED illumination | 15 mA @24 V AC/DC |
Electrical data | Output
| Utilization category DC-13 (EN IEC 60947-5-1) | 2 A @ 24 V |
|---|---|
| Switching current (AC-15) | 30 A |
| Switching current (DC-13) | 2,2 A |
Device protection
| Condition lifetime | load-dependent, temperature dependent |
|---|
Device protection | Electrical
| Electrical lifetime | 1000000 Cycles |
|---|---|
| Degree of protection (EN IEC 60529) | IP65 |
Device protection | Mechanical
| Mechanical endurance | 1000000 Cycles |
|---|---|
| Operating life B10d | 250000 Cycles |
Mechanical data
| Bounce time max. | 9 ms |
|---|
Mechanical data | Material data
| Material contact | AgNi |
|---|
Mechanical data | Mounting data
| Mounting method | screwed |
|---|---|
| Height | 103 mm |
| Width | 72 mm |
| Depth | 91 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
|---|---|
| Operating temperature max. | 60 °C |
| Storage temperature min. | -25 °C |
| Storage temperature max. | 85 °C |
Technical Data | Reliability
| Lambda normally closed contact | 20 % |
|---|

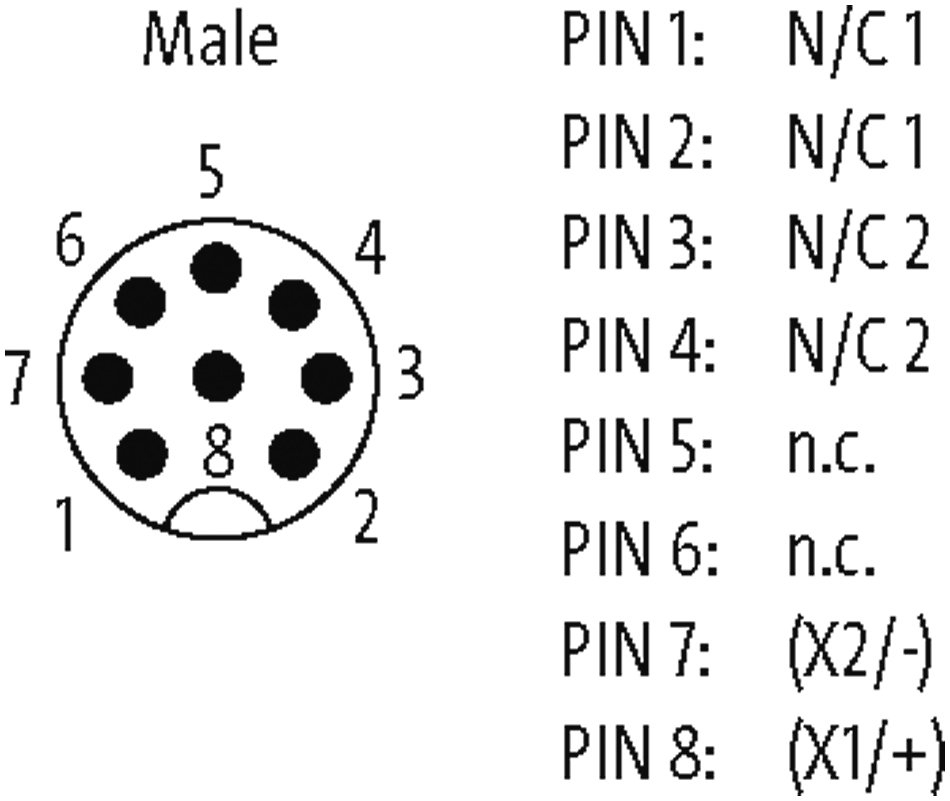

Connection data
Connection type 1
| Family construction form | M12 |
|---|---|
| Gender | male |
| Color contact carrier | black |
| Coding | A |
| No. of poles | 8 |
Classifications
| ECLASS-6.0 | 27371244 |
|---|---|
| ECLASS-6.1 | 27371244 |
| ECLASS-7.0 | 27371244 |
| ECLASS-8.0 | 27371244 |
| ECLASS-9.0 | 27371244 |
| ECLASS-10.1 | 27371244 |
| ECLASS-11.1 | 27371244 |
| ECLASS-12.0 | 27371244 |
| ETIM-5.0 | EC002034 |
Commercial data
| customs tariff number | 85365080 |
|---|---|
| GTIN | 4048879594813 |
| Packaging unit | 1 |
