SOLID67 DIO16 60mm M12L 5P 54503
Product may differ from image

SOLID67 DIO16 60mm M12L 5P

SOLID67 Multiprotocol Profinet or EthernetIP
Art.No.: 54503
Weight: 0.507 kg
Country of origin:  DE
not available
Find similar Product
Ask question
 Recommend Product
 Product Comparison
List price per piece:
Download to Easy-Import-Export

Description

Digital inputs/outputs
DIO16
M12 Power, 5-pole, L-coded
60 mm
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
Certificate
Certificate
Certificate
Bus technologies
Bus technologies

Electrical data | Supply
Norm operating voltage EN 61131-2
Operating voltage US DC 24 V
Operating voltage UA DC 24 V
Total current UA max. 9 A
Total current US max. 9 A
Electrical data | Input
Overload resistant yes
Short-circuit protected yes
Type input PNP, for 3-wire sensors or mechanical switches
Sensor current US per input max. 0,2 A
Electrical data | Output
Overload resistant yes
Short-circuit protected yes
Output current per pin max. 2 A
Total current output max. 9 A
Industrial communication
Supported protocol PROFINET
Industrial communication | Ethernet/IP
DLR (Device Level Ring) yes
EtherNet/IP addressing BOOTP, DHCP, Rotary switch
Supports quick connection (QC) max. 500 ms
Industrial communication | Profinet
IRT (network communication) yes
MRP client yes
PROFINET Netload Class III
PROFINET addressing DCP
PROFINET conformance class C
PROFINET specification V2.3
Diagnostics
Actuator warning via LED and BUS
Diagnostic No voltage, Under voltage
Diagnostic via BUS per module and channel
Diagnostic via LED per module and channel
Short circuit diagnosis yes
LED display Ethernet connection/data traffic
Cable break per port
Overload diagnosis yes
Device protection | Electrical
Degree of protection (EN IEC 60529) IP67

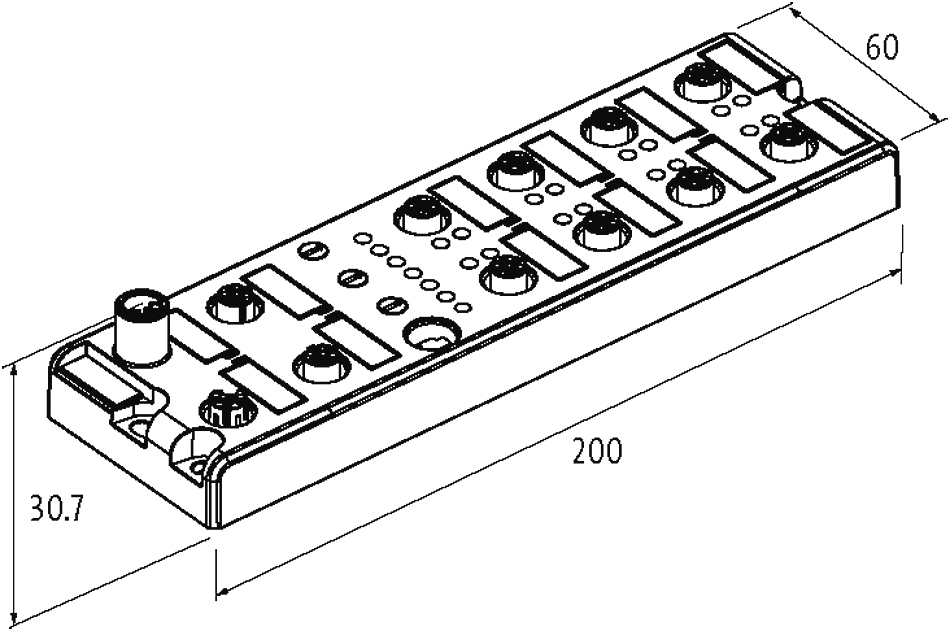

Mechanical data | Mounting data
Suitable for mounting type 2-hole screw mounting
Height 30,7 mm
Width 60 mm
Depth 200 mm
Environmental characteristics | Climatic
Operating temperature min. -20 °C
Operating temperature max. 70 °C

Connection types
Connection type 1 X01, X02
Connection type 2 X03
Connection type 3 X04
Connection type 4 X1-X8
Connection type 1
Family construction form M12
Gender female
Color contact carrier green
Coding D
No. of poles 4
Connection type 2
Family construction form M12
Gender male
Color contact carrier gray
Coding L
No. of poles 5
Connection type 3
Family construction form M12
Gender female
Color contact carrier gray
Coding L
No. of poles 5
Connection type 4
Family construction form M12
Gender female
Color contact carrier black
Coding A
No. of poles 5

ECLASS-6.0 27242604
ECLASS-6.1 27242604
ECLASS-7.0 27242604
ECLASS-8.0 27242604
ECLASS-9.0 27242604
ECLASS-10.1 27242604
ECLASS-11.1 27242604
ECLASS-12.0 27242604
ETIM-5.0 EC001599
customs tariff number 85389099
GTIN 4048879752275
Packaging unit 1


Data Regarding Article:
  • Download Product-PDF
  • Download Approval: UL Listed CA 54503_E201820-NRAQ7_ulc_z_a.pdf
  • Download Approval: UL Listed US 54503_E201820-NRAQ_ul_z_a.pdf
  • Download Certificate: ProfiNet  54503_Z12129-13.04.2020-v2.33_pn_z_a.pdf
  • Download Configuration Files: EDS 54500_SOLID67_KF5_x_11.zip
  • Download Configuration Files: GSDML 54501_SOLID67_KF0_x_11.zip
  • Download Construction files: DXF 54503_dxf_x_a.7z
  • Download Construction files: P8 54503_p8_2_50.zip
  • Download Construction files: STP 54503_stp_d_a.7z
  • Download Document: Installation guide 54503_ina_x_12.zip
  • Download Document: User manual 54500_hdb_x_12.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 10-11-20_(1) RoHS REACh exception 6c_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf
  • Download Information: Certificate of conformity UKCA 54503_10-05.18_uk_z_a.pdf
  • Download Information: EU declaration of conformity 54503_10-05.18_ce_z_a.pdf
  • Download Information: MTTF Report 54503_Telcordia(20°C,60°C)-Berechnung_mttf_p_a.pdf
