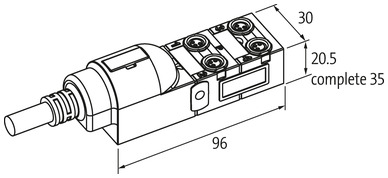

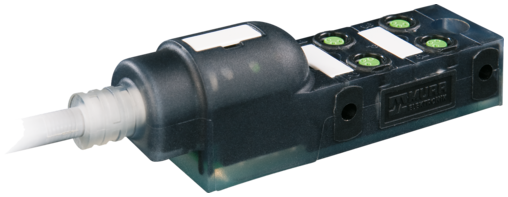

EXACT8, 4XM8, 3 POLE MOULDED CABLE
15.0m PUR 4*0,34+2*0,75 exit norm..
| Art.No.: | 8000-84010-3341500 |
| Weight: | 1.272 kg |
| Country of origin: | DE |
Out of Stock - Contact Us for Availability
Description
15.0 m
4-way, 3-pole
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
4-way, 3-pole
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Technical Data
Form
| Form | 84010 |
|---|
Technical Data
| Operating voltage | 24 V DC |
|---|---|
| Operating current per contact | max. 2 A |
| Locking of ports | Screw thread (M8×1 mm) |
| Protection | IP65/IP67 |
| Housing | Plastic, flame retardant |
| Signal per port | 1 - (31-32) |
| Total current | max. 8 A |
General data
| Temperature range | -20...+80 °C, depending on cable quality |
|---|
Cables
| No./diameter of wires | 4× 0.34 + 2× 0.75 mm² |
|---|---|
| Wire isolation | TPE-E |
| C-track properties | 5 Mio. |
| Outer Ø | 7.6 mm ±5% |
| Cable number | 334 |
| Approval (cable) | UL (AWM-Style 20233), CSA |
| Color jacket | gray |
| Jacket Color | gray |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -5...+60 °C |
| Bend radius (fixed) | 5× outer Ø |
| Bend radius (moving) | 10× outer Ø |
| Material jacket | PUR (UL/CSA) |
Contact Layout
| PIN 1 | (+) |
|---|---|
| PIN 3 | (-) |
| PIN 4 | (NO)/(S1) |
| LED (green): Power / LED (yellow): (S1) |
| Product article number of manufacturer | 8000-84010-3341500 |
|---|
Commercial data
| ECLASS-6.0 | 27279219 |
|---|---|
| ECLASS-6.1 | 27279219 |
| ECLASS-7.0 | 27279219 |
| ECLASS-8.0 | 27279219 |
| ECLASS-9.0 | 27440108 |
| ECLASS-10.1 | 27440108 |
| ECLASS-11.1 | 27440108 |
| ECLASS-12.0 | 27440108 |
| ETIM-5.0 | EC002585 |
| customs tariff number | 85444290 |
| EAN | 4048879056557 |
| Packaging unit | 1 |
