20m PUR, 8x0.5+3x1.0, bl halogen free UL/CSA
Art.No.: 8072-68410-4452000
Weight: 2.406 kg
Country of origin:  CZ
Out of Stock - Contact Us for Availability
 Product Comparison
List price per piece:


20.0 m
Xtreme - Outdoor
8-way distribution boxes M12
with LED for digital PNP-signals 24 V DC
Further cable lengths on request.

Technical Data
Operating voltage 24 V DC
Operating current per contact max. 4 A
Locking of ports Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Protection IP65, IP67, IP68
Housing Plastic housing
General data
Temperature range -30...+85 °C
No./diameter of wires 8× 0.5 + 3× 1.0 mm²
C-track properties 2 Mio.
Outer Ø 8.3 mm ±5%
Cable number 445
Approval (cable) UL (AWM-Style 20233), CSA
Jacket Color black
Temperature range (fixed) -40...+80 °C
Temperature range (mobile) -40...+60 °C
Bend radius (fixed) 5× outer Ø
Bend radius (moving) 10× outer Ø
Torsion stress 0.5 Mio. ±180°/m
Material jacket PUR (UL/CSA)

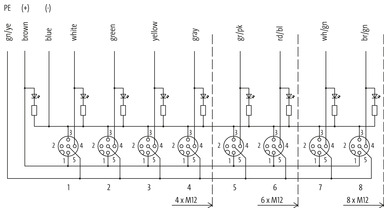

Contact Layout
PIN 1 (+)
PIN 3 (-)
PIN 4 (NO)/(S1)
PIN 5 (Earth)
LED (green): Power / LED (yellow): (S1)
Product article number of manufacturer 8072-68410-4452000

ECLASS-6.0 27143423
ECLASS-6.1 27279219
ECLASS-7.0 27279219
ECLASS-8.0 27279219
ECLASS-9.0 27440108
ECLASS-10.1 27440108
ECLASS-11.1 27440108
ECLASS-12.0 27440108
ETIM-5.0 EC002585
customs tariff number 85444290
EAN 4048879314978
Packaging unit 1

Data Regarding Article:
  • Download Data Sheet
  • Download Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 07-11-20_(10) RoHS REACh exception 6c 7a 7cI_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
