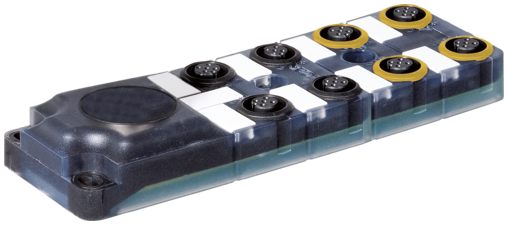

EXACT12 SAFETY, BACKSIDE SOLDERED SPRING TERM.
P1-4 M12 5-pol. LED, P5-8 M12 4/3-pol. 1:1 no LED
| Art.No.: | 8000-98790-0000000 |
| Weight: | 0.135 kg |
| Country of origin: | DE |
Out of Stock - Contact Us for Availability
Description
5-pole, 4/3-pole, potentially separated
rear connection
Spring clamp terminals
with LED for digital PNP-signals 24 V DC (port 1...4)
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
flat gasket included
rear connection
Spring clamp terminals
with LED for digital PNP-signals 24 V DC (port 1...4)
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
flat gasket included
Technical Data
Technical Data
| Operating voltage | 24 V DC |
|---|---|
| Operating current per contact | max. 4 A |
| Locking of ports | Screw thread (M12×1 mm) |
| Protection | IP65/IP67 |
| Housing | Plastic, flame retardant |
| Total current | max. 8 A |
General data
| Temperature range | -20...+60 °C |
|---|
| Product article number of manufacturer | 8000-98790-0000000 |
|---|
Commercial data
| ECLASS-6.0 | 27143423 |
|---|---|
| ECLASS-6.1 | 27279219 |
| ECLASS-7.0 | 27279219 |
| ECLASS-8.0 | 27279219 |
| ECLASS-9.0 | 27440108 |
| ECLASS-10.1 | 27440111 |
| ECLASS-11.1 | 27440111 |
| ECLASS-12.0 | 27440111 |
| ETIM-5.0 | EC002585 |
| customs tariff number | 85369010 |
| EAN | 4048879315623 |
| Packaging unit | 1 |
