EXACT12, 8XM12, 5-POLE, CAP, PLUG. SPRING TERM. 8000-88540-0000000
Product may differ from image

EXACT12, 8XM12, 5-POLE, CAP, PLUG. SPRING TERM.

Self wireable, PNP LED
Art.No.: 8000-88540-0000000
Weight: 0.21 kg
Country of origin:  DE
Available
Find similar Product
Ask question
 Recommend Product
 Product Comparison
List price per piece:

Description


8-way, 5-pole
Form PNP
Spring clamp plug-in terminals
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Certificate
Certificate
Certificate
Certificate

Technical Data
Operating voltage 24 V DC
Operating current per contact max. 4 A
Connection Spring clamp plug-in terminals: max. 1.5 mm² (AWG 16)
Protection IP65/IP67
Housing Plastic, flame retardant
Total current max. 8 A
General data
Temperature range -20...+70 °C

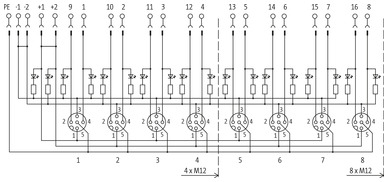

Contact Layout
PIN 1 (+)
PIN 2 (NC)/(S2)
PIN 3 (-)
PIN 4 (NO)/(S1)
PIN 5 (Earth)
LED (green): Power / LED (yellow): (S1) / LED (white): Signal (S2)
Product article number of manufacturer 8000-88540-0000000

ECLASS-6.0 27143423
ECLASS-6.1 27279219
ECLASS-7.0 27279219
ECLASS-8.0 27279219
ECLASS-9.0 27440111
ECLASS-10.1 27440111
ECLASS-11.1 27440111
ECLASS-12.0 27440111
ETIM-5.0 EC002585
customs tariff number 85369010
EAN 4048879053853
Packaging unit 1


Data Regarding Article:
  • Download Data Sheet
  • Download Approval: UL Listed CA 8000-88540-0000000_E201820_NRAQ7_ulc_z_a.pdf
  • Download Approval: UL Listed US 8000-88540-0000000_E201820_NRAQ_ul_z_a.pdf
  • Download Construction files: DXF 8000-88540-0000000_dxf_x_a.zip
  • Download Construction files: STP 8000-88540-0000000_stp_x_a.zip
  • Download Construction files: STP 8000-88450-0000000_stp_x_b.zip
  • Download Document: Product data 8000-84450-0000000_pd_x_10.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 09-11-20_(3) RoHS REACh exception 6c 7cI_DoC_z_a.pdf
  • Download Information: Certificate of conformity UKCA 8000-88540-0000000_02-08.22_uk_z_a.pdf
  • Download Information: EU declaration of conformity 8000-88540-0000000_02-08.22_ce_z_b.pdf
  • Download Information: MTTF Report 8000-88540-0000000_SN29500(40°C)-BerechnungV1.4_mttf_p_a.pdf
