EXACT12, 4XM12, 5-POLE, BASIC HOUSING, NPN-LED'S
Without homerun-cable
| Art.No.: | 8000-84501-0000000 |
| Weight: | 0.078 kg |
| Country of origin: | DE |
Out of Stock - Contact Us for Availability
Description
4-way, 5-pole
Form NPN
Screw plug-in terminals
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Technical Data
Technical Data
| Operating voltage | 24 V DC |
|---|---|
| Operating current per contact | max. 4 A |
| Protection | IP65/IP67 |
| Housing | Plastic, flame retardant |
| Total current | max. 8 A |
General data
| Temperature range | -20...+70 °C |
|---|

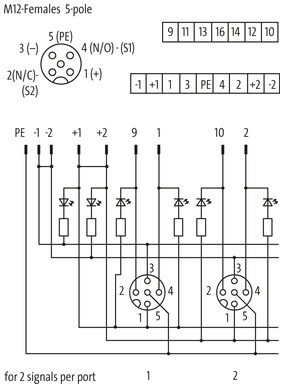

Contact Layout
| PIN 1 | (+) |
|---|---|
| PIN 2 | (NC)/(S2) |
| PIN 3 | (-) |
| PIN 4 | (NO)/(S1) |
| PIN 5 | (Earth) |
| LED (green): Power / LED (yellow): (S1) / LED (white): Signal (S2) |
| Product article number of manufacturer | 8000-84501-0000000 |
|---|
Commercial data
| ECLASS-6.0 | 27279219 |
|---|---|
| ECLASS-6.1 | 27279219 |
| ECLASS-7.0 | 27279219 |
| ECLASS-8.0 | 27279219 |
| ECLASS-9.0 | 27440108 |
| ECLASS-10.1 | 27440111 |
| ECLASS-11.1 | 27440111 |
| ECLASS-12.0 | 27440111 |
| ETIM-5.0 | EC002585 |
| customs tariff number | 85369010 |
| EAN | 4048879055840 |
| Packaging unit | 1 |
