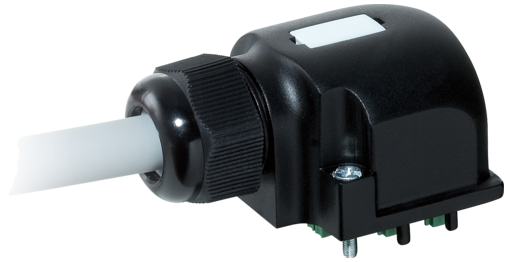

CAP FOR D-BOX M12 4-WAY 5-POLE
No pot.-sep. 10m PUR/PVC, 8x0,34+3X0.75
| Art.No.: | 8000-84559-3631000 |
| Weight: | 1.256 kg |
| Country of origin: | CZ |
Out of Stock - Contact Us for Availability
Description
10.0 m
for 4-way distribution boxes, 5-pole
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
for 4-way distribution boxes, 5-pole
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Technical Data
Form
| Form | 84559 |
|---|
Technical Data
| Housing | Plastic, flame retardant |
|---|---|
| Total current | max. 8 A |
General data
| Temperature range | -20...+80 °C, depending on cable quality |
|---|
Cables
| No./diameter of wires | 8× 0.34 + 3× 0.75 mm² |
|---|---|
| Wire isolation | PVC |
| C-track properties | 2 Mio. |
| Outer Ø | 8.1 mm ±5% |
| Cable identification | 363 |
| Cable Type | 2 (PUR/PVC) |
| Cable number | 363 |
| Approval (cable) | UL (AWM-Style 21441/10955), CE conform |
| Cable weight [g/m] | 115,5 g |
| Material wire | Cu wire, bare |
| Resistor (core) | max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C) |
| Single wire Ø (core) | 0.15 mm (0.34 mm²); 0.2 mm (0.75 mm²) |
| Construction (core) | 19× 0.15 mm (0.34 mm²); 24× 0.2 mm (0.75 mm²); (multi-strand wire class 5) |
| Diameter (core) | 8× 0.34 + 3× 0.75 mm² |
| AWG | similar to AWG 22 (0.34 mm²); similar to AWG 18 (0.75 mm²) |
| Material wire isolation | PVC |
| Material property (wire isolation) | CFC-, cadmium-, silicone- and lead-free |
| Shore hardness (wire isolation) | 43 ±5 D |
| Wire-Ø incl. isolation | 1.3 mm ±5% (0.34 mm²); 1.8 mm ±5% (0.75 mm²) |
| Color/numbering of wires | wh, ye, gr, grpk, rdbl, gn, whgn, brgn+bl, br, gnye longitudinally striped |
| Shield | no |
| Material jacket | PUR/PVC |
| Shore hardness (jacket) | 87 ±5 A |
| Outer-Ø (jacket) | 8.1 mm ±5% |
| Color jacket | gray |
| Jacket Color | gray |
| chemical resistance | good resistance to oil, gasoline and chemicals (EN 60811-404) |
| Nominal voltage | U0/U 300/300 V AC |
| Test voltage | 2000 V AC |
| Current load capacity | to DIN VDE 0298-4 |
| Temperature range (fixed) | -30...+80 °C |
| Temperature range (fixed) | -30...+80 °C |
| Temperature range (mobile) | -5...+70 °C |
| Temperature range (mobile) | -5...+70 °C |
| Bend radius (fixed) | 5× outer Ø |
| Bend radius (moving) | 10× outer Ø |
| Bend radius (moving) | 10× outer Ø |
| No. of bending cycles (C-track) | max. 2 Mio. (25 °C) |
| Travel speed (C-track) | max. 2 m/s |
| Acceleration (C-track) | max. 10 m/s² |
| Material jacket | PUR/PVC (UL/CSA) |
| Product article number of manufacturer | 8000-84559-3631000 |
|---|
Commercial data
| ECLASS-6.0 | 27143423 |
|---|---|
| ECLASS-6.1 | 27279219 |
| ECLASS-7.0 | 27279219 |
| ECLASS-8.0 | 27279219 |
| ECLASS-9.0 | 27440108 |
| ECLASS-10.1 | 27440108 |
| ECLASS-11.1 | 27440108 |
| ECLASS-12.0 | 27440108 |
| ETIM-5.0 | EC002585 |
| customs tariff number | 85444290 |
| EAN | 4048879055581 |
| Packaging unit | 1 |
