TERMINAL MODULE CUBE 67 IP67 56681
Product may differ from image

TERMINAL MODULE CUBE 67 IP67

8 digital inputs, 8 multifunction channels
Art.No.: 56681
Weight: 0.28 kg
Country of origin:  CZ
Available
Find similar Product
Ask question
 Recommend Product
 Product Comparison
List price per piece:
Download to Easy-Import-Export

Description

Terminal module
DIO8/DI8 - (E) TB-Box
Connection cables are in the online shop under "Connection Technology".
Certificate
Certificate

Electrical data | Supply
Norm operating voltage EN 61131-2
Operating voltage US DC 24 V
Operating voltage UA DC 24 V
Current consumption max. 50 mA
Total current UA max. 4 A
Total current US max. 4 A
Electrical data | Input
Type input PNP, for 3-wire sensors or mechanical switches
Input filter time 1 ms
Sensor current US per input max. 0,2 A
Electrical data | Output
Overload resistant yes
Short-circuit protected yes
Output current per pin max. 0,5 A
Lamp load 10 W
Diagnostics
Actuator warning per channel via LED and BUS
Diagnostic No voltage, Under voltage
Diagnostic via BUS per module and channel
Diagnostic via LED per module and channel
Short circuit diagnosis yes
LED display Ethernet connection/data traffic
Overload diagnosis yes
Installation | Pin assignment
Terminal row X0 Input
Terminal row X1 Input/Output
Device protection | Electrical
Degree of protection (EN IEC 60529) IP66

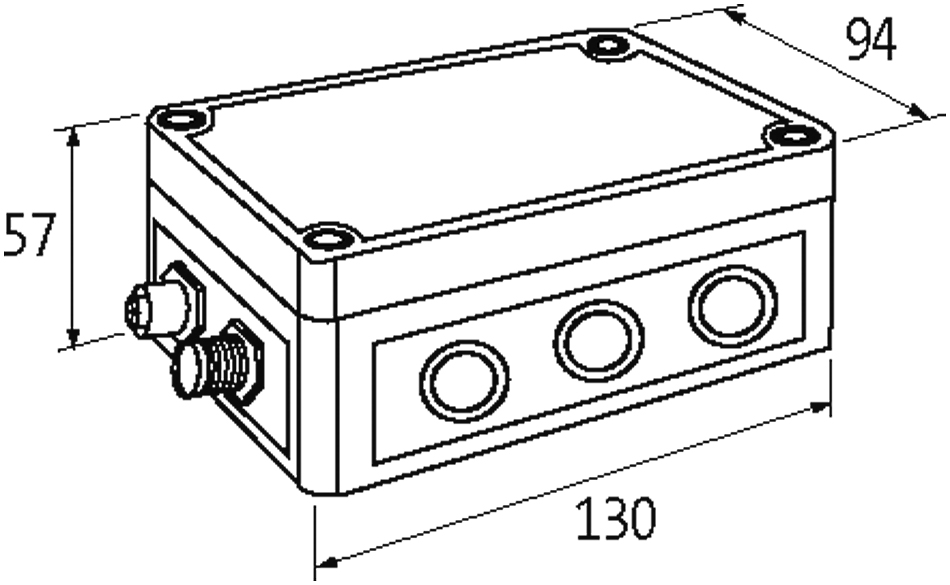

Mechanical data | Mounting data
Mounting method screwed
Height 130 mm
Width 94 mm
Depth 57 mm
Environmental characteristics | Climatic
Operating temperature min. 0 °C
Operating temperature max. 55 °C
Storage temperature min. -20 °C
Storage temperature max. 75 °C

Connection types
Connection type 1 Bus In
Connection type 2 Bus Out
Connection type 3 X0
Connection type 4 X1
Connection type 5 X2
Connection type 6 X3
Connection type 1
Family construction form M12
Gender male
Color contact carrier black
Coding A
No. of poles 6
Connection type 2
Family construction form M12
Gender female
Color contact carrier black
Coding A
No. of poles 6
Connection type 3
Connection Spring clamp terminals FK
Family construction form terminal
Gender female
Color contact carrier colorless
No. of poles 8
Connection type 4
Connection Spring clamp terminals FK
Family construction form terminal
Gender female
Color contact carrier colorless
No. of poles 8
Connection type 5
Connection Spring clamp terminals FK
Family construction form terminal
Gender female
Color contact carrier colorless
No. of poles 8
Connection type 6
Connection Spring clamp terminals FK
Family construction form terminal
Gender female
Color contact carrier colorless
No. of poles 8

ECLASS-6.0 27242604
ECLASS-6.1 27242604
ECLASS-7.0 27242604
ECLASS-8.0 27242604
ECLASS-9.0 27242604
ECLASS-10.1 27242604
ECLASS-11.1 27242604
ECLASS-12.0 27242604
ETIM-5.0 EC001599
customs tariff number 85389099
GTIN 4048879048293
Packaging unit 1


Data Regarding Article:
  • Download Product-PDF
  • Download Construction files: DXF 56681_dxf_x_a.zip
  • Download Construction files: P8 56681_p8_2_50.zip
  • Download Construction files: STP 56681_stp_x_a.zip
  • Download Document: Installation guide 56681_ina_6_25.pdf
  • Download Document: User manual 56970_hdb_x_25.zip
  • Download Document: User manual 56971_hdb_x_37.zip
  • Download Document: User manual 56975_hdb_x_13.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 13-11-20_(2) RoHS REACh exception 7cI_DoC_z_c.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 05-02-23_(2) China RoHS 2 20EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity UKCA 56681_983-04.16_uk_z_a.pdf
  • Download Information: EU declaration of conformity 56681_983-04.16_ce_z_b.pdf
  • Download Information: MTTF Report 56681_SN29500(40°C)-BerechnungV1.4_mttf_p_b.pdf
